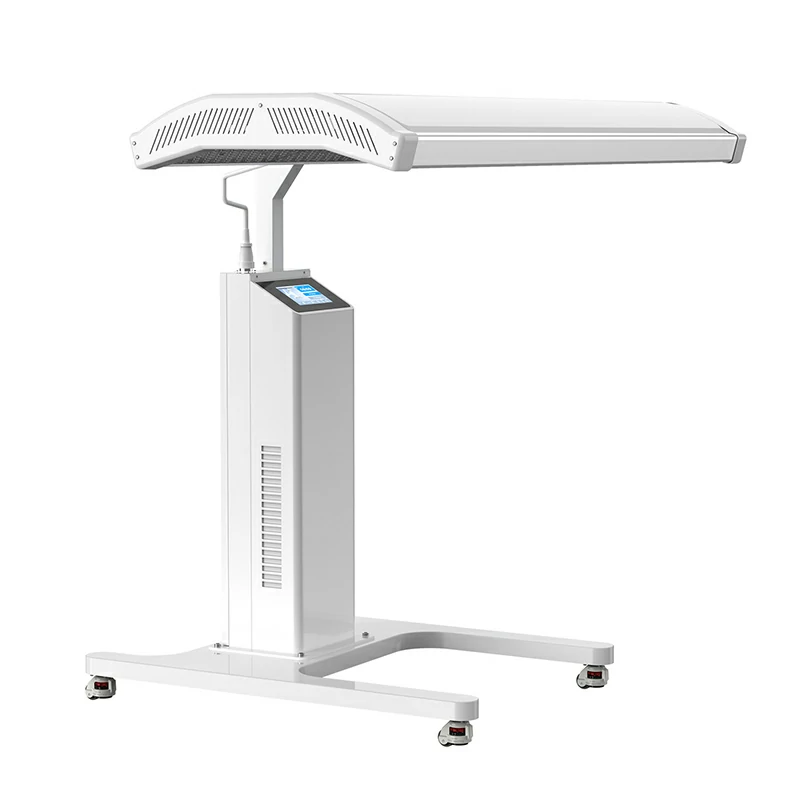

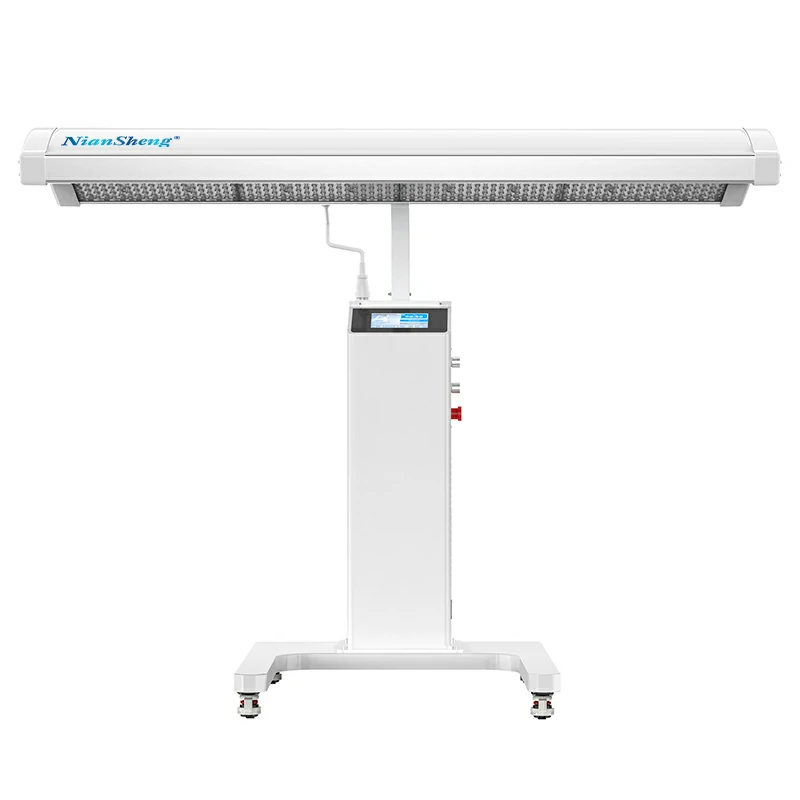

Red Light Therapy Panel T7

Deep Focusing & High Transmittance: Features 30° focusing lenses with 94%–95% light transmittance, increasing tissue penetration depth by 40%–50% (up to 8–10cm) compared to standard 60° lenses while significantly reducing light scatter.

High-Density & High Irradiance: Built with 1,280 professional 3535 SMD LEDs delivering an irradiance of up to 260mW/cm² (adjustable across 100–300mW/cm²), offering uniform coverage without blind spots and shortening treatment session times.

Dual Wavelengths & Precise Control: Combines 660nm (skin rejuvenation and collagen synthesis) and 810nm (deep muscle/joint relief and anti-inflammation) wavelengths. Supports pulse frequency adjustment from 1–20,000Hz, power dimming from 1%–100%, and independent multi-wavelength control.

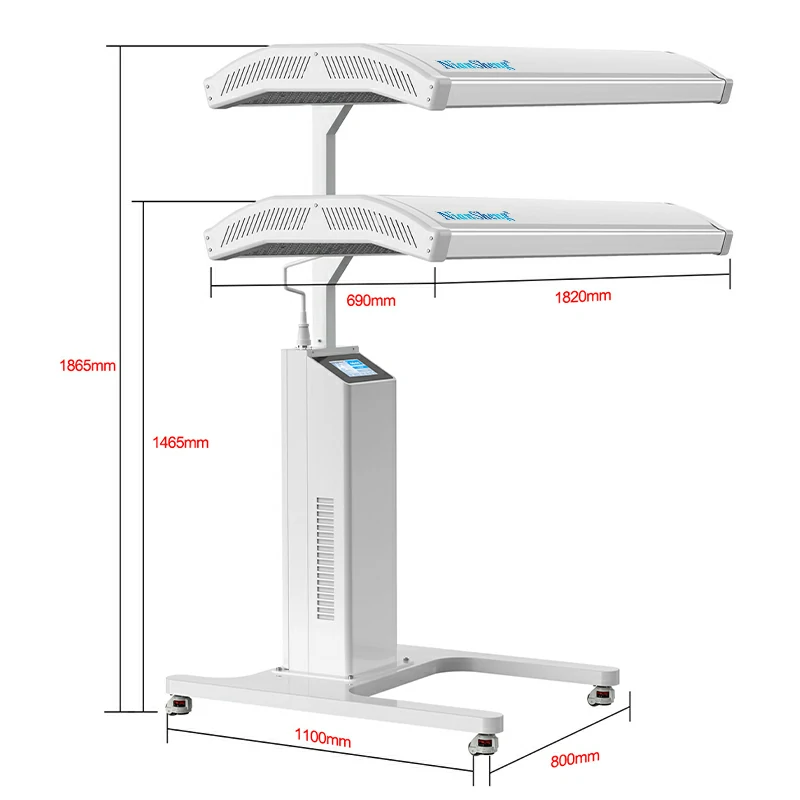

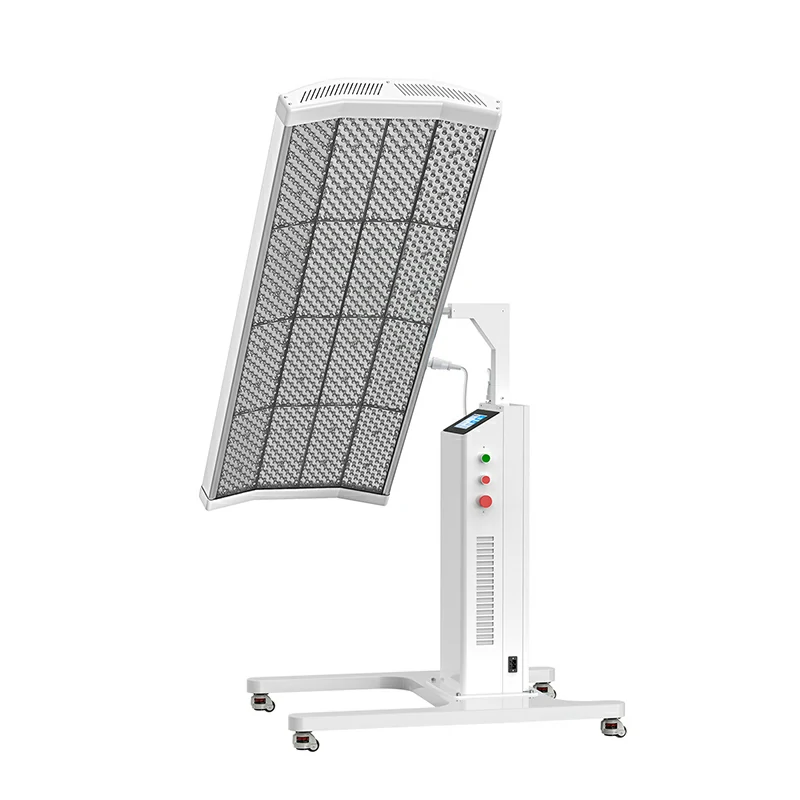

Flexible Structure & Full Body Coverage: Supports 360° panel rotation and height adjustment (1489mm–1889mm) with swivel casters and a detachable base, allowing full coverage whether sitting, standing, or lying down.

Smart Interface & Customization (OEM/ODM): Equipped with a 7-inch touch screen with preset one-touch therapy modes and Bluetooth tablet remote control. Full customization options available for wavelengths (380nm–1070nm), brand logo, casing, and UI interface.

Efficient Heat Dissipation & Long Lifespan: Integrated with 5 high-speed cooling fans and mesh vents to keep operational temperatures below 50°C. Its modular driver and lens design ensure a 100,000-hour operational lifespan and simplified maintenance.
